SILCA Unocode F800 Key Cutting Machine D8A3280ZB
SILCA Unocode F800 Key Cutting Machine D8A3280ZB
BARCODE: N/A
The exclusive UNOCODE F800 is the truly all-in-one solution for duplicating by code flat keys, automating the key feeding, engraving, cutting and sorting leaving you free to manage your next customer.
Designed for specialist locksmiths, Silca’s latest electronic key cutting machine automates and simplifies the complete key duplication process to improve the speed and quality of service to your customer. Faster key duplication means significantly improved returns on each key sold for you.
Download BrochureDescription
SILCA Unocode F800 Key Cutting Machine D8A3280ZB
BARCODE: N/A
The exclusive UNOCODE F800 is the truly all-in-one solution for duplicating by code flat keys, automating the key feeding, engraving, cutting and sorting leaving you free to manage your next customer.
Designed for specialist locksmiths, Silca’s latest electronic key cutting machine automates and simplifies the complete key duplication process to improve the speed and quality of service to your customer. Faster key duplication means significantly improved returns on each key sold for you.

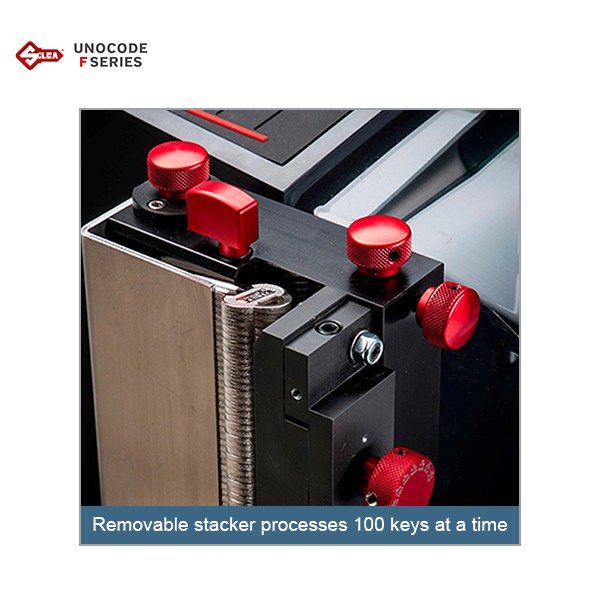

- 100 keys feeder capacity with 2.5 mm thick keys
- Around 90 keys with five pins cut and engraved automatically per hour

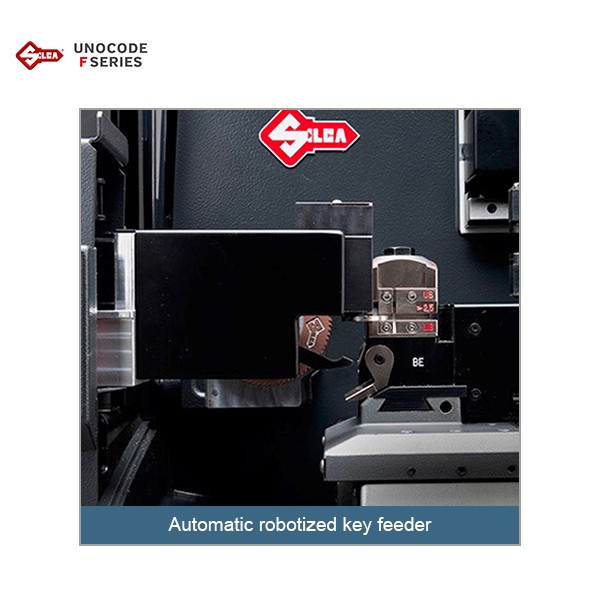

- 10 seconds max. for automatic key feeding
- 55% bigger working area

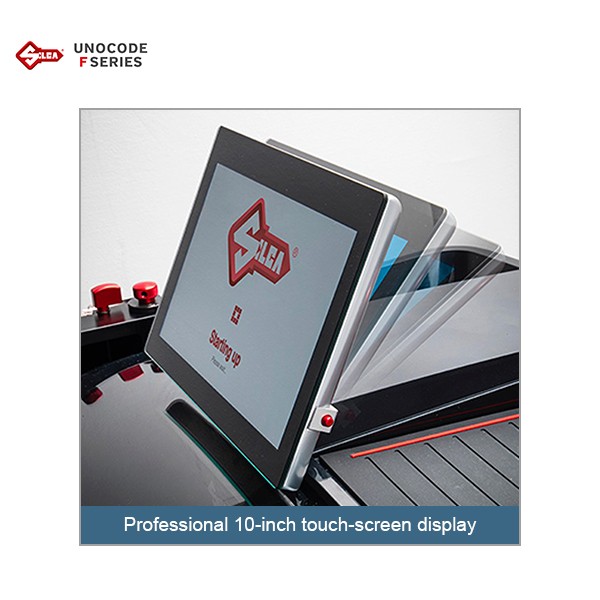

- 10” display industrial grade
New software features

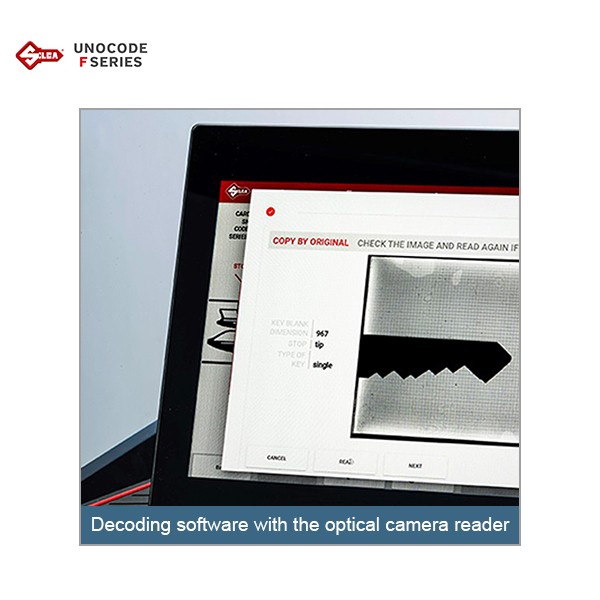

- Intuitive software interface developed for the needs of professional locksmiths, with shortcuts to the most used cutting cards and job queues
- Works in stand-alone
- Compatible with SKP Pro to work with existing data archives and Codemaker cards
Information
| Brand | |
|---|---|
| Product Type | Electronic Key Cutting Machines |
| Color | Black, Gery, Red |
Technical Data
Electricity Supply:
100-240V – 50/60Hz
Cutter motor:
48VDC
Engraving motor:
24VDC
Key cutter:
Prismatic in coated hard metal (widia)
Engraving cutters:
Upper cutter ‘A’ in coated hard metal (widia)
Lower cutter ‘B’ in hard metal
Tool speed:
Prismatic cutter: 1070 rpm
Engraving cutters: 14500 rpm
Movements:
On 2 axes with ball screws activated by step motors on ground roller
runners. Rotating axis available with optional clamp.

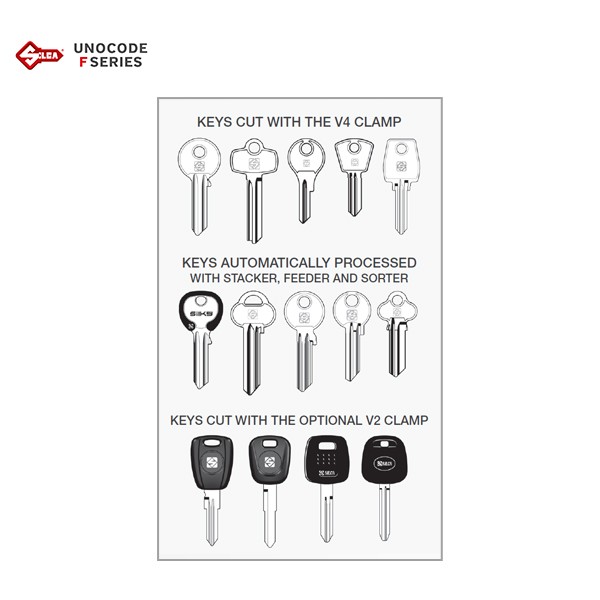

V4 clamp:
With 4 standard sides for gripping keys with different thicknesses
< 2.7: for thicknesses 1 mm to 2.7 mm
> 2.5: for thicknesses 2.5 mm to 4 mm
Runs:
With clamp: X axis: 30 mm, Y axis: 72 mm
Keys with head stop: Y axis: max. 45 mm (by code) – Y axis: max. 42 mm (with feeder)
Keys with tip stop: Y axis: max. 45 mm (by code)
Max dimensions:
Width: 921 mm – Depth: 740 mm – Height: 680 mm
Weight:
Without feeder: 61.2 Kg – With feeder: 87.2 Kg
