SILCA Futura M900 Key Cutting Machine D8B0310ZB
SILCA Futura M900 Key Cutting Machine D8B0310ZB
BARCODE: N/A
The NEW Futura M Series

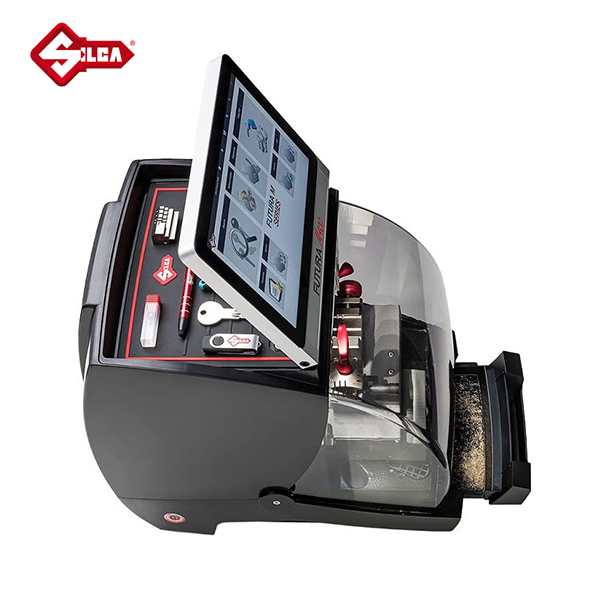

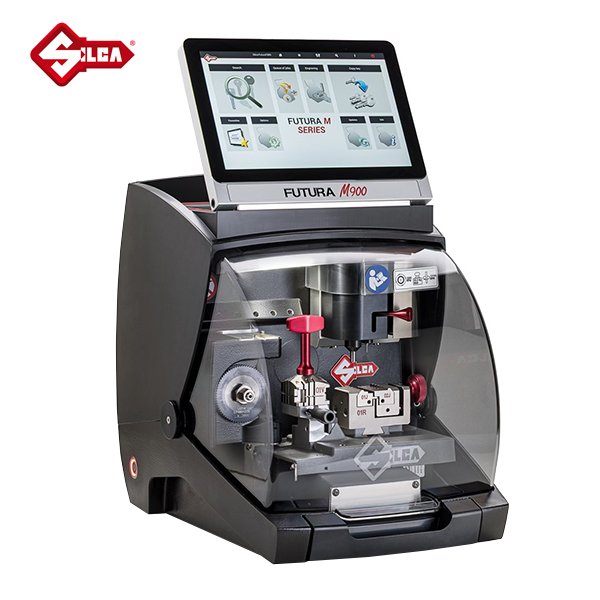

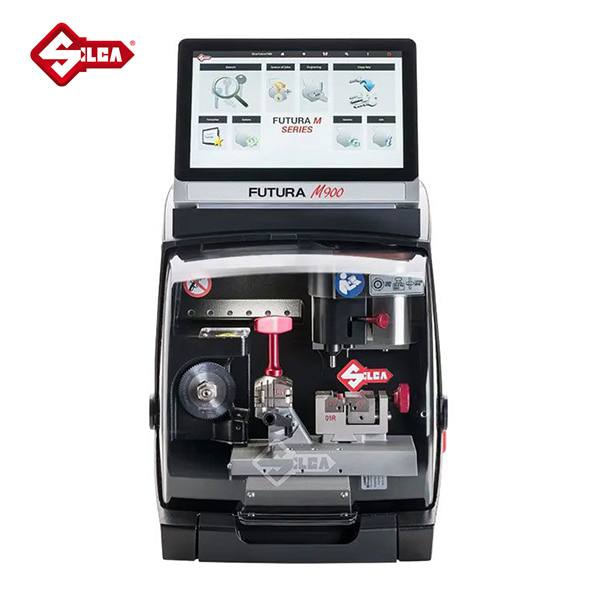

Futura M900 Silca’s latest generation electronic key cutting machine combines high performance with maximum versatility. Designed to cut a wide range of flat and dimple keys with flat and inclined keyways, as well as keys associated with protected systems.
Compact and ergonomic design, new integrated adjustable monitor and long-lasting widia cutter ensure precision, stability and quiet operation.
- Illuminated on/off button
- Lifetime software subscription included
- New high-grade integrated tablet provides superior connection & performance
- New motor driver for quiet operation
- Widia cutter
- Easy to use software
- Double cutting station to duplicate flat, dimple and automotive keys
- Adjustable 10″ colour touch screen display
- Optimised engraving for a wide range keys, medals and nameplates

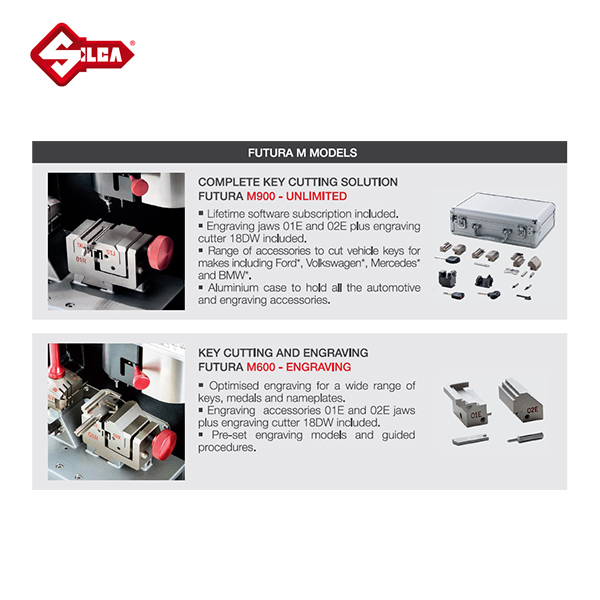

- 01E and 02E jaws plus engraving cutter 18DW included
Features:
- Power Supply: Machine: 24V d.c. – 5,5 Amp. – 130W – Power pack: 90/264V a.c. – 50/60Hz – 220W
- Cutter Motor (Flat Cuts): 24V d.c.
- Cutter Motor (Dimple/Laser Cuts): 24V d.c.
- Prismatic Cutter (Flat Cuts): UO1W, in widia hard metal with coating
- Cutter (Ddimple Cuts): 01D, in HSS super rapid steel
- Cutter (Laser Cuts): 01 LW, in carbide, AlCrN coated
- Tool Speed: Prismatic Cutter: 1585 rpm – Cutter (dimple/laser cuts): 12100 rpm
- Movements: On 3 axes (with special bushes) driven by step motors (on rectified roller guides)
- Clamp (Flat Cuts): 01V, removable, with 4 universal sides for holding flat, vehicle and cruciform keys
- Clamp (Dimple/Laser Cuts): 01R, removable and provided with interchangeable jaws (01J and 02J)
- Runs: X Axis: 30mm, Y Axis: 50mm, Z Axis: 27mm
- Dimensions: Width: 318mm, Depth: 413mm, Height with display open: 530mm (with display closed: 365mm)
- Weight: 20kg
Description
SILCA Futura M900 Key Cutting Machine D8B0310ZB
BARCODE: N/A
The NEW Futura M Series
Futura M900 Silca’s latest generation electronic key cutting machine combines high performance with maximum versatility. Designed to cut a wide range of flat and dimple keys with flat and inclined keyways, as well as keys associated with protected systems.
Compact and ergonomic design, new integrated adjustable monitor and long-lasting widia cutter ensure precision, stability and quiet operation.

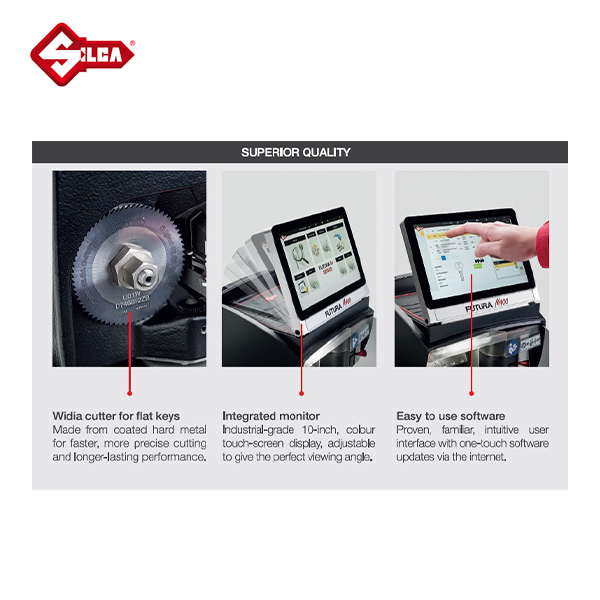

- Widia Cutter For Flat Keys: Made from coated hard metal for faster, more precise cutting and longer-lasting performance.
- Integrated Monitor: Industrial-arade 10-inch, colour touch-screen display, adjustable to give the perfect viewing angle.
- Easy To Use Software: Proven, familiar, intuttive user interface with one-touch software updates via the internet.

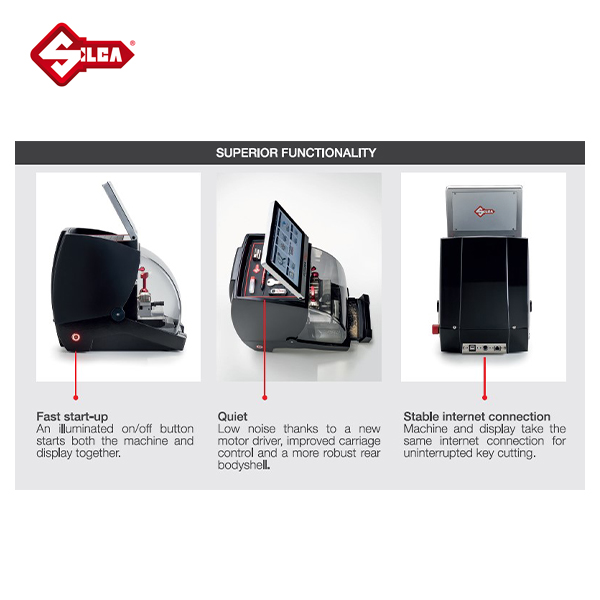

- Fast Start-up: An iluminated on/off button starts both the machine and display together.

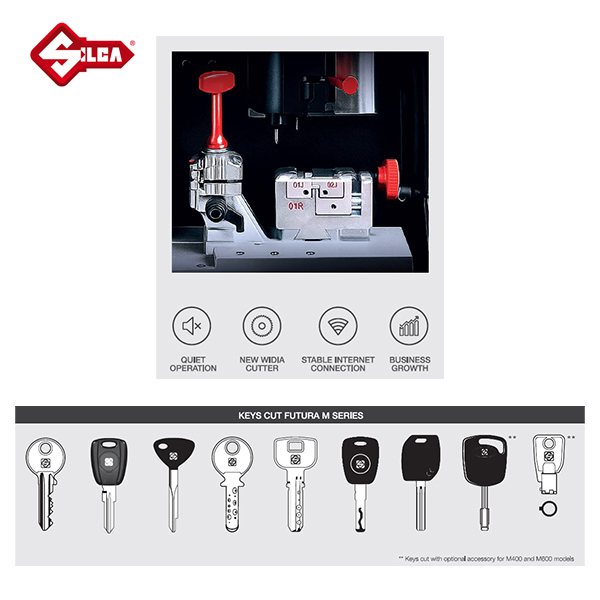

- Quiet: Low noise thanks to a new motor driver, improved carriage control and a more robust rear bodyshell.
- Stable Internet Connection: Machine and display take the same internet onnection for uninterrupted key cutting.
Features:
- Power Supply: Machine: 24V d.c. – 5,5 Amp. – 130W – Power pack: 90/264V a.c. – 50/60Hz – 220W
- Cutter Motor (Flat Cuts): 24V d.c.
- Cutter Motor (Dimple/Laser Cuts): 24V d.c.
- Prismatic Cutter (Flat Cuts): UO1W, in widia hard metal with coating
- Cutter (Ddimple Cuts): 01D, in HSS super rapid steel
- Cutter (Laser Cuts): 01 LW, in carbide, AlCrN coated
- Tool Speed: Prismatic Cutter: 1585 rpm – Cutter (dimple/laser cuts): 12100 rpm
- Movements: On 3 axes (with special bushes) driven by step motors (on rectified roller guides)
- Clamp (Flat Cuts): 01V, removable, with 4 universal sides for holding flat, vehicle and cruciform keys
- Clamp (Dimple/Laser Cuts): 01R, removable and provided with interchangeable jaws (01J and 02J)
- Runs: X Axis: 30mm, Y Axis: 50mm, Z Axis: 27mm
- Dimensions: Width: 318mm, Depth: 413mm, Height with display open: 530mm (with display closed: 365mm)
- Weight: 20kg
Information
| Brand | |
|---|---|
| Product Type | Electronic Key Cutting Machines |
| Color | Black, Grey, Red |
Technical Data
Power Supply: Machine: 36V DC – 5.5 Amp – 130W – Power supply: 90/264V AC – 50/60Hz.
Cylindrical Cutter: 17L: in HSS Super Rapid steel coated
Tool Speed: Cylindrical cutter 12100 rpm.
Movements: On 3 axes (with special bushes) driven by step motors (on rectified roller guides).
Clamp: 01EX rotating, 4-sided universal for holding car key (for laser and double-sided flat cuts).
Carriage Runs: X axis: 41 mm Y axis: 46 mm Z axis: 27 mm
Dimensions: Width: 270 mm (without button); 281 mm (with button); Depth: 421 mm; Height: 308 mm
Weight: 13kg
